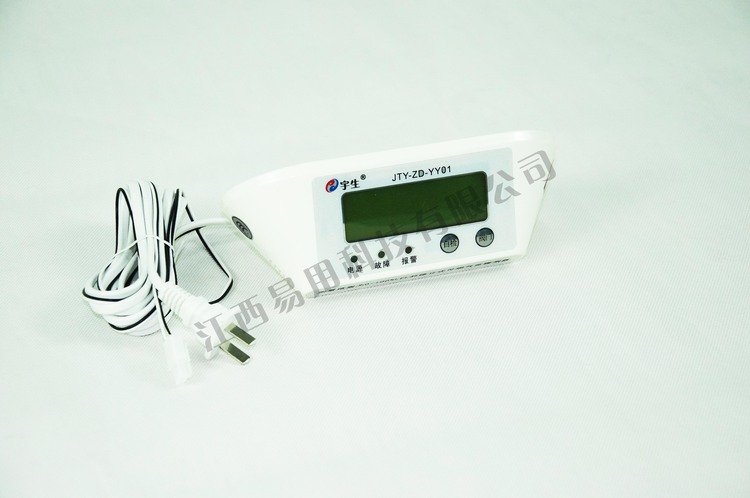

JTY-ZD-YY01 combustible gas detector adopts advanced microprocessor as control unit, built-in high-quality electrochemical sensor, measuring methane (natural gas) and C3H8 (liquefied petroleum gas) two kinds of gas, suitable for long time uninterrupted operation. Is a high quality household gas alarm products, with high stability, long life, moisture, smoke, fast response, anti poisoning ability and so on. Meet GB 15322.2 standard requirements, and obtain the compulsory product certification (3C certificate).

Suitable gas: natural gas (CH4) liquefied petroleum gas (C3H8)
Display range: 0 ~ 20%LEL
Alarm setting value: 10%LEL
Ambient temperature range: 0 degrees to 55 degrees C (indoor use type)
Humidity: less than 95%
Input voltage range: AC180 ~ 240V/50Hz
Storage temperature range: -25 to 55
Pressure limit: 86 ~ 106KPa
Output mode: output DC12V, 100mA
Power dissipation: static power consumption less than 1.2W, dynamic power consumption < 2W
Product service life: 3 years
